PHONE GUIDES
Get to know your phone
Use the buttons below the display to choose the words shown on screen. These are called soft keys: their labels change during a call. Use the arrow keys to move through lists and the centre button to select.
| Button in the picture | What it does |
|---|---|
| 1 · Line keys | Choose the extension or contact beside a button. |
| 5 · Transfer | Send a caller to another person. |
| 8 · Volume | Adjust the call while talking or the ringtone while idle. |
| 10 / 11 / 12 · Mute, speaker and headset | Control your microphone and audio device. |

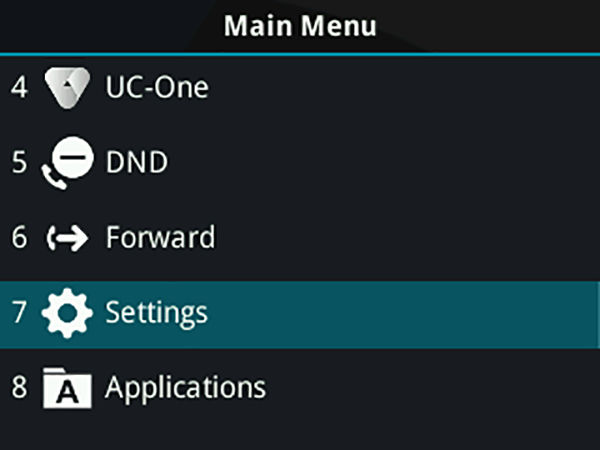

| 14 / 15 · Home and arrows | Open menus; highlight an option and press the centre Select button. |
| 16 · Soft keys | Choose the label directly above the button. |
Button positions vary between VVX models. Use the named physical keys and the on-screen labels.
Find your way around
The buttons beside the display are line keys. They may show your extension, coworkers or shared Park positions. A button marked More reveals extra actions; a page key reveals more line-key labels.
Before your first call
Check that your extension appears on screen. If you see “No service”, “Unregistered” or a network error, open the troubleshooting guide before changing any settings.
